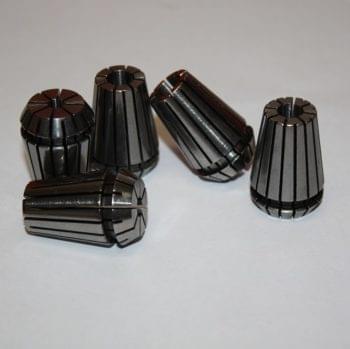

ER32 Collet Set, 5 Pieces, Three Quarter Inch, High Precision, P/N C-F-34-5P
QTY = 5
Made out of hardened alloy steel.
Ground Surfaces. Size range is 0.711″ to 0.750″.
Call for back order status or multiple order discount.
or send inquiries to firstname.lastname@example.org
- Additional information
ER32 Collet Set, 5 Pieces
ER32 Collet Specifications
Fractional Size: 3/4″
Collapsing Range: 0.750 +0.000 / -0.039″ (Tool Shank Size: 0.711 to 0.750″)
Collet Type: ER 32 Spring Collet
Material: Through hardened alloy spring steel. Precision ground surfaces.
Manufacturer: Made in Italy.
Recommended Torque: 100 ft/lbs
Run Out: Precision ground surfaces for accurate fit and low run-out. 0.0002″ T.I.R. Suitable for wood and metal working.
Maintenance: Protect from rust with rust preventative spray. Remove preventative before placing into service. Use correct concentration of coolant to prevent corrosion. Always check collets for scoring or wear. Replace if worn or damaged.
Compatibility: Can be used with all ER32 toolholders.
Dimensions: D = 33 mm d = 3/4″ L = 40 mm
