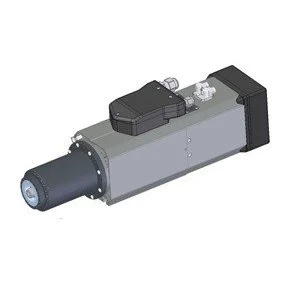

HSK 63F Spindle, 5.4hp, 220/380V, QD-1F 4/12 24 63F NC CB BT

HSK 63F ATC Spindle

Fan Cooled. 5.4hp, 380V, 4P,   35 pounds

ABEC 7 Ceramic Ball Bearings, 24,000 RPM

Sensors for Tool presence, open chuck and shaft rotation

PT 200 Series by Hiteco

Part Number: QD-1F 4/12 24 63F NC CB BT

Code: QD.200.A05.00

Multiple Order Discounts Available

Call (714) 307-2332 or send inquiries to: sales@hsspindles.com



SKU: QD.200.A05.00 Category:
  • Description
  • Additional information

Description

HSK 63F Spindle

Part Number: QD-1F 4/12 24 63F NC CB BT

Code: QD.200.A05.00

PT 200 Series by Hiteco

The QD.200.A05.00 HSK 63F spindle is a very high quality spindle made in Italy. Rugged design, built to last. This spindle is built to last for many years. We have repaired many brands of spindles through out the years and can say with certainty that you will not find a better spindle for the price.

Mounting: Base Mount Style, Six M8 taps and two M8 dowel holes.

HSK 63F Specs: Maximum collet size is ER40. The maximum tool shank is 28mm or 1.1875″.

Maximum Speed: 24,000 rpm

Run-out: <.0002″ (.005 mm)

Horsepower: 5.4 hp (4 kW), 220V (20.5A) or 380V (11.8A). For single voltage, see QD.200.A04.00

Cooling Method: Fan cooled, 24 VDC fan.

Features: Cone clean, Three proximity sensors (tool lock, open chuck, and shaft rotation), ABEC 7 Ceramic Ball Bearings

Air Required: Options: If you need a spindle with these options, please call or fill out the contact form.

     Release tool (Open Chuck) T– 6 – 6.5 BAR

     Lock Tool (Close Chuck) – 6 – 6.5 BAR

     Taper Clean (Cone Clean) – 6 – 6.5 BAR

     Pressurization (Air Seal) – 0.5 – 1.0 BAR

Connectors – None, cord grips supplied. Circular connectors available ($130 upgrade fee includes spindle and machine side connectors)

Country of Origin: Italy

Recommended VFD: VFD037B43A for 380V and VFD037B23A for 220V.

Dimension: Refer to Installation Dwg

Power Curve Same as QD.200.A02.00

3D Model: Download Step file here: Not currently Available

Weight: 16kg (35 lbs)

Notes: HSK tooling offers advantages over ISO tooling. Read here for more information.

HSK World: HSK Links

Paypal financing available if approved by Paypal. Interest free if paid off in 6 months.



Additional information

Weight 20 kg
Dimensions 61 x 30 x 30 cm
