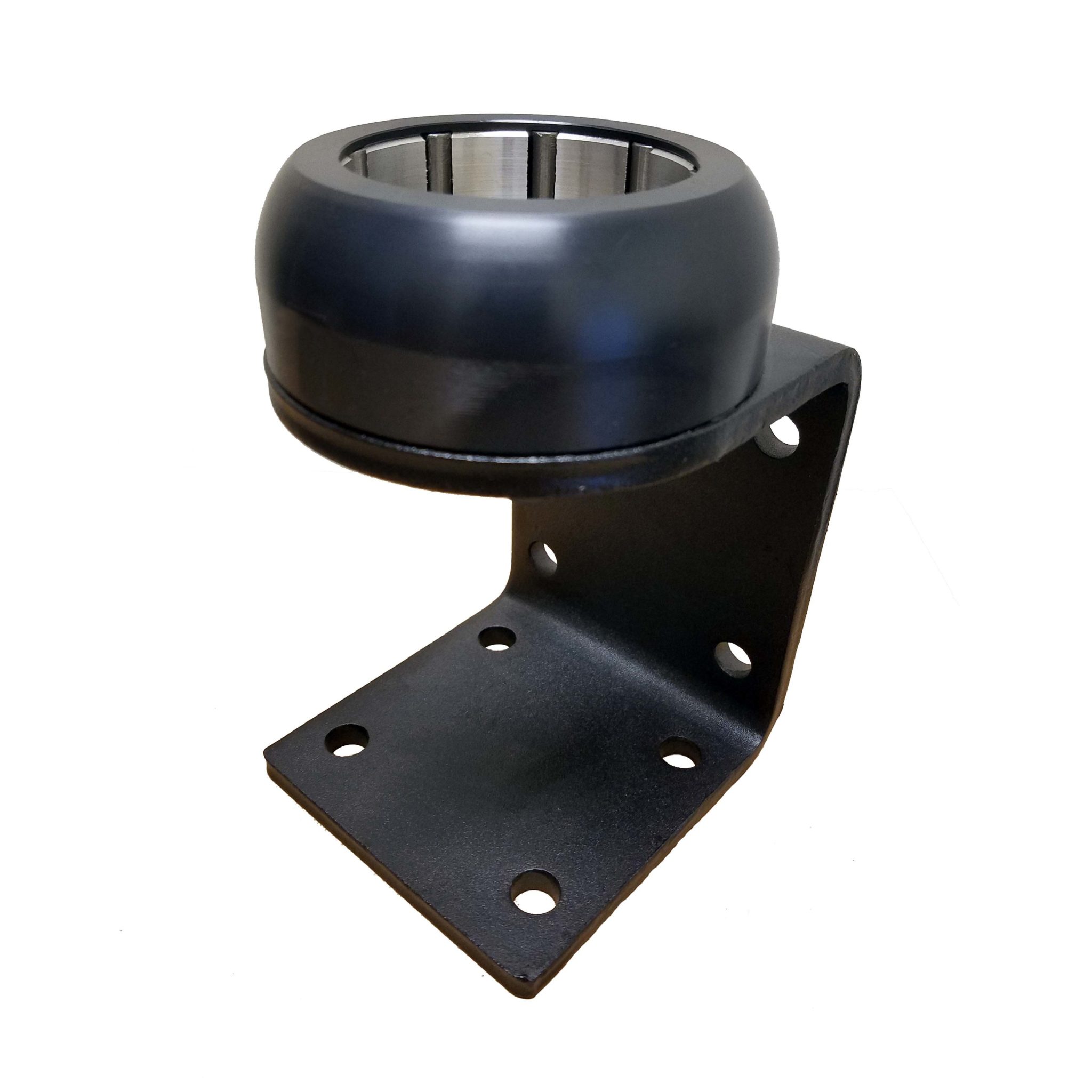

HSK 80 Tool Tightening Stand, 80mm Size, PN TTS-80

Holds HSK 80 A thru F tool holders

Bidirectional roller bearings that lock in place

Call for back order status or multiple order discount.

1-714-307-2332

or send inquiries to sales@hsspindles.com





$280.00

SKU: TTS-80 Categories: ,
  • Description
  • Additional information

Description

HSK 80 Tool Tightening Stand.

Specifications

HSK 80 Tool Tightening Stand: For HSK 80 A thru F tool holders

Material: Steel Body with bidirectional roller bearings that lock in place when turned.

Manufacturer: Made in Italy.         Part No.: TTS-80

Recommended Torque:

ER16 Hex Nut            42 ft/lbs under 1/16″ Collet I.D.           30 ft/lbs over 1/16″ Collet I.D.

ER16 Slotted Nut       42 ft/lbs under 1/16″ Collet I.D.            30 ft/lbs over 1/16″ Collet I.D.

ER20 Hex Nut            59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER20 Slotted Nut       59 ft/lbs under 1/16″ Collet I.D.            24 ft/lbs over 1/16″ Collet I.D.

ER25 Mini Nut            25 ft/lbs under 1/16″ Collet I.D.           25 ft/lbs over 1/16″ Collet I.D.

ER25 Slotted Nut        100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER32 Slotted Nut       100 ft/lbs under 1/16″ Collet I.D.         100 ft/lbs over 1/16″ Collet I.D.

ER40 Slotted Nut       130 ft/lbs under 1/16″ Collet I.D.          130 ft/lbs over 1/16″ Collet I.D.

SYOZ 25 Hook Nut    90 ft/lbs under 1/16″ Collet I.D.            90 ft/lbs over 1/16″ Collet I.D.

Maintenance: Protect from rust with rust preventative spray.

Compatibility: All HSK 80 tool holders.

Additional information

Weight 3.5 kg
Dimensions 10 × 10 × 20 cm
