HT-2 25-10 24 63E NL VS 3C

HT-2 25-10 24 63E NL VS 3C

HSK 63E Spindle

Liquid Cooled, 34hp, 380V, 4P, 93 Pounds

Ceramic Ball Bearings, 24,000 RPM

Inverter Supply, Circular Male Connector

Long Nose, Labyrinth With Air Seal

Single Effect Pneumatic Cylinder

Sensors S1, S2, S3, Taper Cleaning

Additional Options:

Encoder 1 Vpp or TTL, Sensor S5, Oil Mist MQL

Bearings Temperature Monitoring, Air Tool

Robotech Series by Hiteco

Part Number: HT-2 25/10 24 63E NL VS 3C

Multiple Order Discounts Available

Call (714) 307-2332 or send inquiries to:

  • Description

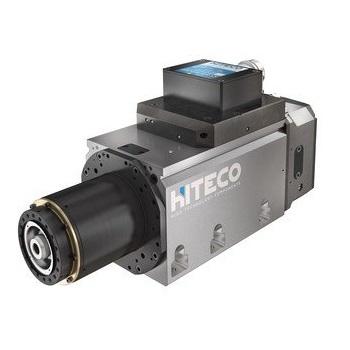

HSK 63E Spindle

Part Number: HT-2 25/10 24 63E NL VS 3C

Code: 29L0502621G

Robotech Series by Hiteco

The HT-2 25/10 24 63E NL VS 3C spindle is a very high quality spindle made in Italy. Rugged design, built to last. This spindle is built to last for many years. We have repaired many brands of spindles through out the years and can say with certainty that you will not find a better spindle for the price.

Maximum Speed: 24,000 rpm

Horsepower: 34 hp

Cooling Method: Liquid Cooling

Features: Cone clean, Three proximity sensors (tool lock, open chuck, and shaft rotation), Ceramic Ball Bearings

Air Required: Options: If you need a spindle with these options, please call or fill out the contact form.

     Release tool (Open Chuck) T– 6 – 6.5 BAR

     Lock Tool (Close Chuck) – 6 – 6.5 BAR

     Taper Clean (Cone Clean) – 6 – 6.5 BAR

     Pressurization (Air Seal) – 0.5 – 1.0 BAR

Country of Origin: Italy

HT-2 25/10 24 63E NL VS 3C Layout: link

HT-2 25/10 24 63E NL VS 3C Specifications: link

Complete Robotech Catalog here: link

Weight: 93 lbs
