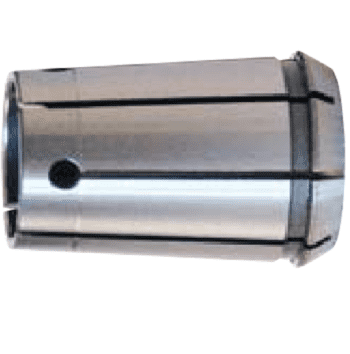

SYOZ 25 Collet, Three Quarter Inch, Perske Style, P/N IORT2534

3/4″ Collet. DIN 6388/A
Range .679″ – .718″

Perske, SYOZ  Style

Call for back order status or multiple order discount.

1-714-307-2332

or send inquiries to engineering@hsspindles.com

$24.29

SKU: IORT2534 Categories: ,
  • Description
  • Additional information

Description

SYOZ 25 Collet

 SYOZ 25 Collet Specifications:

Fractional Size: 3/4″

Collapsing Range: 0.718 +0.000 / -0.039″ (Tool Shank Size: 0.718 to 0.679″)

Collet Type: STOZ 25 Spring Collet, DIN 6388, Perske Style

Material: Through hardened alloy spring steel. Precision ground surfaces.

Manufacturer: Made in Italy.

Recommended Torque: 90 ft/lbs

Run Out: Precision ground surfaces for accurate fit and low run-out. 0.0004″ T.I.R. Suitable for wood working.

Maintenance: Protect from rust with rust preventative spray. Remove preventative before placing into service. Use correct concentration of coolant to prevent corrosion. Always check collets for scoring or wear. Replace if worn or damaged.

Compatibility: Can be used with all IORT toolholders.

Dimensions: D = 35.5 mm     d = 18.24 mm (.718″)    L = 52 mm

ORT Collet

Additional information

Weight .023 kg
Dimensions 3 × 3 × 4 cm
